▌High Voltage Disc Ceramic Capacitors(RD Series)
Acap corporation offers the complete range of electrical characteristics and mechanical configurations high voltage ceramic capacitor available in the industrial and telecommunication field. Large manufacturing and variety temperature coefficient for epoxy coating make them suit your best capacitors value.
Features:
- Mini Size Design and High Capacitance
- Temperature Characteristic: NPO(COG) & X5R & Y5V& Y5P
- Capacitance Range : Up to 0.1 µF
- Rated Voltage: Up to 40KVDC
- Low Dissipation Factor.
- Compliant to Standard IEC 384-10
- Epoxy Encapsulated: meets flame test requirement of standard UL 94V-0
- Custom Sizes, Voltages, and Values Available
- Compliance to RoHs directive.
Specifications:
Operation Temperature, Rated Voltage, Capacitance Range,
Q-Value and Dissipation Factor (Tangent θ), Insulation Resistance, Capacitance Range, Dielectric Strength, Percent Defective Allowed (PDA) Visual, Mechanical.
Environmental: (Test Option)
Thermal Shock, Solder ability, Soldering Heat Resistance, Humidity Load Test, Height Temperature Loading Test, Terminal Strength, Vibration, Moisture Resistance, Voltage Temperature Characteristic, Aging Rated, Temperature Coefficient.
|
Capacitance and Dimensions:
|
|
NPO
|
| Dimension D Max |
6KV* |
8KV |
10KV |
12KV |
15KV |
20KV |
25KV |
30KV |
40KV |
| 10.3mm |
15** |
12 |
10 |
8.2 |
6.2 |
5.1 |
3.8 |
3.2 |
|
| 13.6mm |
22 |
18 |
15 |
12 |
10 |
8.2 |
6.2 |
5.0 |
|
| 16.7mm |
30 |
27 |
22 |
18 |
15 |
12 |
10 |
8.2 |
|
| 18.3mm |
39 |
35 |
27 |
25 |
22 |
18 |
15 |
12 |
|
| 19.9mm |
55 |
47 |
39 |
33 |
27 |
22 |
18 |
15 |
|
| 21.5mm |
60 |
55 |
52 |
45 |
39 |
33 |
27 |
22 |
|
| 23.1mm |
80 |
74 |
65 |
52 |
46 |
39 |
33 |
27 |
|
| 24.7mm |
100 |
82 |
75 |
68 |
56 |
47 |
39 |
33 |
|
| 28.5mm |
220 |
150 |
120 |
100 |
82 |
68 |
56 |
47 |
|
| 34.6mm |
270 |
220 |
150 |
120 |
100 |
82 |
68 |
56 |
|
| OD*** |
Radial Disc Type |
Radial Cylinder Type |
|
| |
|
N2200
|
| Dimension D Max |
6KV* |
8KV |
10KV |
12KV |
15KV |
20KV |
25KV |
30KV |
40KV |
| 10.3mm |
47** |
39 |
33 |
27 |
22 |
15 |
10 |
6 |
|
| 13.6mm |
56 |
47 |
33 |
27 |
22 |
18 |
15 |
12 |
|
| 16.7mm |
100 |
82 |
68 |
56 |
47 |
33 |
22 |
15 |
|
| 18.3mm |
120 |
85 |
72 |
60 |
47 |
33 |
25 |
18 |
|
| 19.9mm |
220 |
120 |
100 |
80 |
72 |
50 |
39 |
22 |
|
| 21.5mm |
270 |
200 |
120 |
95 |
72 |
60 |
47 |
33 |
|
| 23.1mm |
330 |
270 |
220 |
150 |
100 |
82 |
68 |
47 |
|
| 24.7mm |
390 |
330 |
220 |
150 |
100 |
82 |
68 |
56 |
|
| 28.5mm |
470 |
390 |
330 |
270 |
220 |
150 |
100 |
82 |
|
| 34.6mm |
560 |
470 |
390 |
330 |
270 |
220 |
150 |
100 |
|
| OD*** |
Radial Disc Type |
Radial Cylinder Type |
|
| |
|
Y5P
|
| Dimension D Max |
6KV* |
8KV |
10KV |
12KV |
15KV |
20KV |
25KV |
30KV |
40KV |
| 10.3mm |
360** |
330 |
270 |
240 |
220 |
100 |
75 |
68 |
60 |
| 13.6mm |
560 |
470 |
390 |
330 |
275 |
200 |
150 |
100 |
82 |
| 16.7mm |
820 |
750 |
680 |
560 |
470 |
330 |
220 |
110 |
95 |
| 18.3mm |
1200 |
1000 |
820 |
680 |
560 |
470 |
330 |
220 |
150 |
| 19.9mm |
1500 |
1200 |
1000 |
820 |
680 |
560 |
470 |
330 |
240 |
| 21.5mm |
1800 |
1500 |
1200 |
1000 |
750 |
680 |
630 |
520 |
430 |
| 23.1mm |
2200 |
1800 |
1500 |
1200 |
1000 |
820 |
750 |
680 |
560 |
| 24.7mm |
3300 |
2200 |
18000 |
1500 |
1200 |
910 |
820 |
750 |
680 |
| 28.5mm |
4700 |
3300 |
2200 |
18000 |
1500 |
1200 |
1000 |
910 |
820 |
| 34.6mm |
6800 |
4700 |
3300 |
2700 |
2200 |
1800 |
1500 |
1200 |
1000 |
| OD*** |
Radial Disc Type |
Radial Cylinder Type |
|
| |
|
Y5U
|
| Dimension D Max |
6KV* |
8KV |
10KV |
12KV |
15KV |
20KV |
25KV |
30KV |
40KV |
| 10.3mm |
1500** |
1200 |
1000 |
820 |
680 |
560 |
470 |
330 |
270 |
| 13.6mm |
1800 |
1500 |
1000 |
820 |
680 |
560 |
470 |
390 |
330 |
| 16.7mm |
2200 |
1800 |
1500 |
1200 |
1000 |
820 |
680 |
560 |
470 |
| 18.3mm |
2700 |
2200 |
1800 |
1500 |
1200 |
1000 |
820 |
680 |
560 |
| 19.9mm |
3300 |
2700 |
2200 |
1800 |
1500 |
1200 |
1000 |
820 |
680 |
| 21.5mm |
4700 |
3900 |
2700 |
2200 |
1800 |
1500 |
1200 |
1000 |
820 |
| 23.1mm |
5600 |
4700 |
3900 |
3300 |
2200 |
1800 |
1500 |
1200 |
1000 |
| 24.7mm |
8200 |
6800 |
5600 |
4700 |
3300 |
2700 |
2200 |
1800 |
1500 |
| 28.5mm |
10000 |
8200 |
6800 |
5600 |
4700 |
3300 |
2700 |
2200 |
1800 |
| 34.6mm |
15000 |
12000 |
10000 |
8200 |
5600 |
4700 |
3300 |
2700 |
2200 |
| OD*** |
Radial Disc Type |
Radial Cylinder Type |
|
|
* Working Voltage: Direct Current.
** Capacitance: Pico Fared
*** Outline Drawing Type
‧Any specifications are not mentioned above lists, please call us.
‧Dimension and capacitance are designed for reference only.
|
CONFIGURATION:

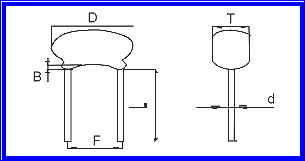

A: Radial Disc Type
d: Lead Diameter (Variable)
B: 2.0mm (Typical)
L: 31.0mm (Typical)

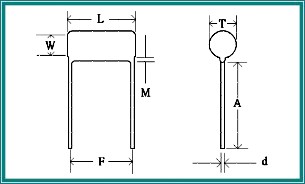

B: Radial Cylinder Type
C: Axial Type

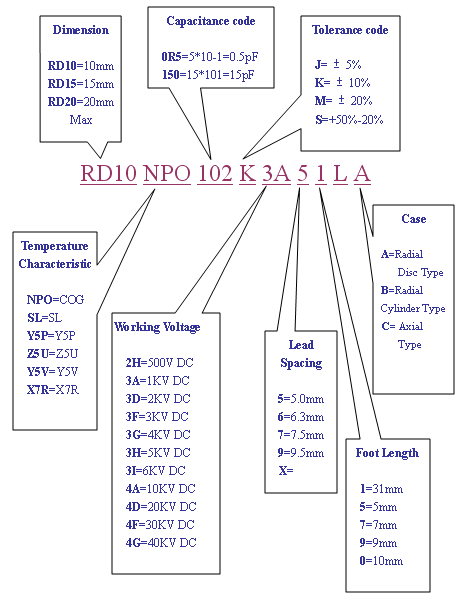

Part Number System:
