▌DoorKnob High Voltage Ceramic Capacitors(HM Series)

Acap corporation's Ceramic Capacitors are available in variety of physical sizes and configurations, including molded screwing mounted and conformal coated in axial leaded and radial leaded. Ceramic dielectric material can be offered in variety of temperature coefficient, such as NPO, N750, N2200, X5R, Y5U…..

The general purpose of these capacitors is suitable for coupling, blocking, by-passing or other application.



Features:

1. Compact Size available and High Capacitance
2. Greater Capacitance Stability.
3. Low Dissipation Factor and Low Heating.
4. Low Power Loss and Distortion Characteristics.
5. Highest AC Voltage Rating.
6. Low Temperature Coefficients.
7. Low Equivalent Series Inductance.
8. Compliance to RoHS directive.

Application:

High Voltage Power Supplies, CRTs, Higher Power RF, Tesla Coil, DC Filtering and De-Blocking, MOT Coil, High Voltage Distribution Switchgear, Solenoid Valve, X-ray Equipment, Pulse Lasers System, Marx Generators, Electrostatic Paint Spray Guns Equipment, Medical Scanners, Electrostatic Precipitators, RF Induction Dielectric Heating Welding Machine, Radio Broadcast Transmitters, Plasma Generators in Semiconductor Manufacture, Lightning Arresters, Laser Machine, Electrostatic Coating Machine, Igniter Started, Pulse Laser Arc Deposition, High Radio Frequency Currents and Voltages, Maximizes Heat Radiation, Antenna Couplers and Circuit, MRI, Induction Heaters, Laser Emits, Power Circuit Breakers, Medical Laser Technology, Electrostatic Copying Machines, AC Voltage Distribution.

General Specifications:

• Operating Temperature Range:-30℃ to +85℃
• Storage Temperature Range:-40℃ to +100℃
• Dielectric Withstanding Strength:150% of rated voltage for 5 second at a room temperature of 25℃ ,charging current at 50 mA Max.
• Insulation Resistance:200 Giga Ohms or 1000Ω‧F at 25℃ which is less.
• Corona Limit: 50 pico coulombs at rated AC voltage.
• Self Resonant Frequency:Ranges from 50 MHz for small diameters to 10 MHz for large diameters.
• Power Factor : 0.1% Max for class I @1MHz, 2% Max for class II-III @1KHz.
• Environmental Design Criteria: EIA 198
• Temperature Coefficient: NPO, N470, N2200, Y5P, Y5U, Y5V……

CONFIGURATION:





Capacitance and Dimensions:

Capacitance and Dimensions:

NPO Dimension Max(mm) 10KV* 15KV 20KV 30KV 40KV 26.0 47** 41 22 18 12 33.0 85 68 47 33 25 39.4 100 91 120 47 38 54.1 240 200 150 100 60 58.4 350 270 220 150 80 61.5 470 330 240 220 100

N2200 Dimension Max(mm) 10KV* 15KV 20KV 30KV 40KV 26.0 120** 91 68 47 33 33.0 220 180 120 90 56 39.4 330 270 200 150 80 54.1 600 470 330 220 150 58.4 680 510 390 290 180 61.5 820 680 510 360 220

Y5U Dimension Max(mm) 10KV* 15KV 20KV 30KV 40KV 22.0 1500 1200 1000 680 470** 26.0 2700 2200 1800 1000 600 33.0 3900 3600 2700 1800 1000 39.4 5600 4300 3600 2700 1800 54.1 6800 5600 4700 3900 2700 58.4 10000 6800 5600 4700 3300 61.5 15000 10000 6800 5600 4700

* Working Voltage: Direct Current. ** Capacitance: Pico Fared ‧Dimension and capacitance are designed for reference only. ‧Any specifications are possible for us if not mentioned on above lists.

 Part Number System:

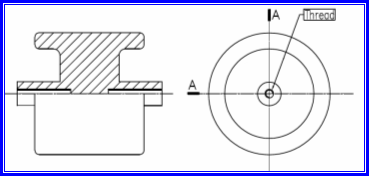

1. Type:High screw Mounting
   Dimension: 30=30mm, 45=45mm, 60=60mm, 70=70mm,…..
2. Temperature Coefficient: NPO, N470, N2200, Y5P, Y5U, Y5V…..
3. Capacitance: 102=1000PF, 103=10,000PF, 5R0=5PF.…..
4. Tolerance: J=+-5%, K=+-10%, M=+-20%, P=+100-0%.…..
5. Working Voltage: 4A=10KV DC, 4F=30KV DC, 4G=40KV DC.…..
6. Internal Code: A, B

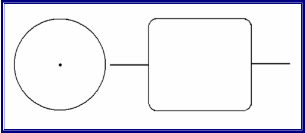

Type:A

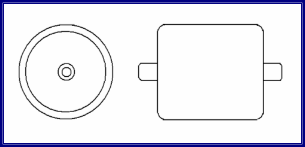

Type: B
